- Home
-
Products
-
IMG - Series - CNC Gantry Vertical Machining Center
-
IMG 540
IMG 540
View SpecificationsSpecification Value Table Size (X & Y) 700 x 400 mm Travel (X) 500 mm Travel (Y / Z) 400 / 500 mm T-Slot (No. x Width) 4 x 18 x 100 Max. Load on Table 4000 Kg Face to Table Top 100 mm Table Variants A-Axis (4 Axis) and A/C Axis (5 Axis) Rapid (X/Y/Z) 30 / 30 / 30 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 9000 RPM Spindle Power 5.5 / 7 Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens -
IMG 650
IMG 650
View SpecificationsSpecification Value Table Size (X & Y) 800 x 500 mm Travel (X) 600 mm Travel (Y / Z) 500 / 500 mm T-Slot (No. x Width) 4 x 18 x 100 Max. Load on Table 5000 Kg Face to Table Top 150 - 650 mm Table Variants A-Axis (4 Axis) and A/C Axis (5 Axis) Rapid (X/Y/Z) 30 / 30 / 30 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 9000 RPM Spindle Power 7.5 / 11 Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens -
IMG 860
IMG 860
View SpecificationsSpecification Value Table Size (X & Y) 1000 x 600 mm Travel (X) 800 mm Travel (Y / Z) 600 / 550 mm T-Slot (No. x Width) 4 x 18 x 100 Max. Load on Table 6000 Kg Face to Table Top 150 - 650 mm Table Variants A-Axis (4 Axis) and A/C Axis (5 Axis) Rapid (X/Y/Z) 30 / 30 / 30 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 9000 RPM Spindle Power 7.5 / 11 Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens -
IMG 1080
IMG 1080
View SpecificationsSpecification Value Table Size (X & Y) 1200 x 1000 mm Travel (X) 1000 mm Travel (Y / Z) 800 / 600 mm T-Slot (No. x Width) 4 x 18 x 100 Max. Load on Table 8000 Kg Face to Table Top 150 - 650 mm Table Variants A-Axis (4 Axis) and A/C Axis (5 Axis) Rapid (X/Y/Z) 30 / 30 / 30 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 9000 RPM Spindle Power 7.5 / 11 Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens
-
IMG 540
-

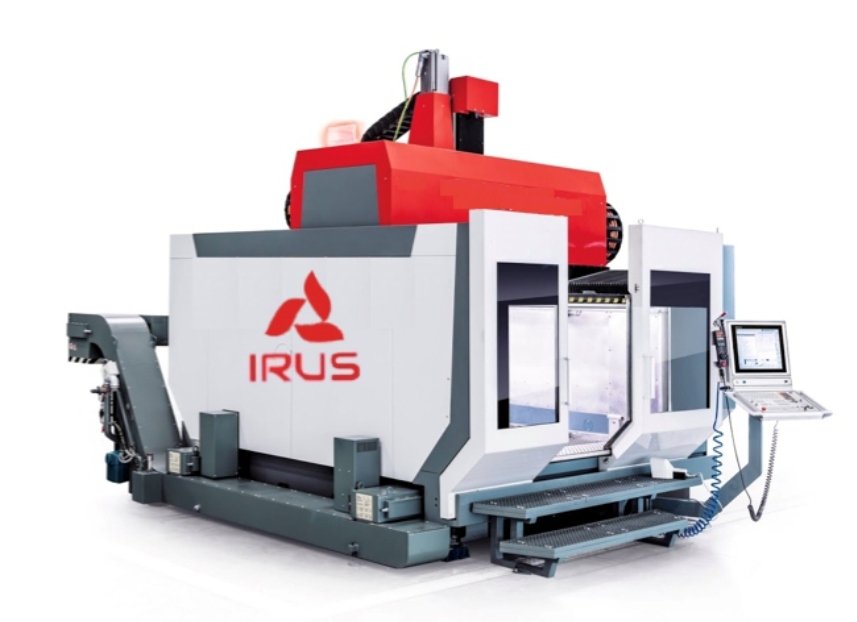

IMG - Series - CNC High Speed Gantry Vertical Machining Center
-
IMG 1200
IMG 1200
View SpecificationsSpecification Value Table Size (X x Y) 1400 x 1200/1600/2200/3200 mm Travel - X 1200/1600/2200/3200 mm Travel - Y 1200 mm Travel - Z 750 (850) mm T-Slot (No. x Width) 7 x 22 x 160 Max. Load on Table 4000 Kg Face to Table Top 150 - 850 (1000) mm Rapid (X/Y/Z) 30/20/20 m/min Feed (X/Y/Z) 10 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 (50) / 9000/6000 RPM Spindle Power 11 / 15 Kw Axis Motor (X/Y/Z) 4 / 3 / 5 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens -
IMG 1600
IMG 1600
View SpecificationsSpecification Value Table Size (X x Y) 1800 x 1600/2200/3200 mm Travel - X 1600/2200/3200 mm Travel - Y 1600 mm Travel - Z 750 (850) mm T-Slot (No. x Width) 7 x 22 x 160 Max. Load on Table 5000 Kg Face to Table Top 150 - 850 (1000) mm Rapid (X/Y/Z) 20/20/20 m/min Feed (X/Y/Z) 10 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 50 / 6000 / (9000) RPM Spindle Power 15 / 18.5 Kw Axis Motor (X/Y/Z) 4 / 3 / 5 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens
-
IMG 1200
-
IMG - Series - CNC Gantry Type Vertical Machining Center
-
IMG 2200
IMG 2200
View SpecificationsSpecification Value Table Size (X x Y) 2400 x 2200/3200/4200/6200 mm Travel - X 2200/3200/4200/6200 mm Travel - Y 2200 mm Travel - Z 850 (1000) mm T-Slot (No. x Width) 7 x 22 x 160 Max. Load on Table 6000 Kg Face to Table Top 150 - 1000 mm Rapid (X/Y/Z) 20/20/20 m/min Feed (X/Y/Z) 10 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 50 / 6000 / (9000) RPM Spindle Power 15 / 18.5 Kw Axis Motor (X/Y/Z) 4 / 3 / 5 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens -
IMG 3200
IMG 3200
View SpecificationsSpecification Value Table Size (X x Y) 3400 x 3200/4200/6200 mm Travel - X 3200/4200/6200 mm Travel - Y 3200 mm Travel - Z 850 (1200) mm T-Slot (No. x Width) 7 x 22 x 160 Max. Load on Table 8000 Kg Face to Table Top 150 - 1000 (1000) mm Rapid (X/Y/Z) 20/20/20 m/min Feed (X/Y/Z) 10 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 50 / 6000 / (9000) RPM Spindle Power 15 / 18.5 Kw Axis Motor (X/Y/Z) 4 / 3 / 5 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens
-
IMG 2200
-
IMV - Series CNC Vertical Machining Center
-
IMV - 650
IMV - 650
View SpecificationsSpecification Value Table Size (X & Y) 800 x 500 mm Travel (X) 600 mm Travel (Y / Z) 500/500 mm T-Slot (No. x Width) 4 x 18 x 100 Max. Load on Table 500 Kg Spindle Face to Table Top 100-500 mm Rapid (X/Y/Z) 30/30/20 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 9000 RPM Spindle Power 5.5/7 Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 CNC Controller Mitsubishi / Fanuc / Siemens -

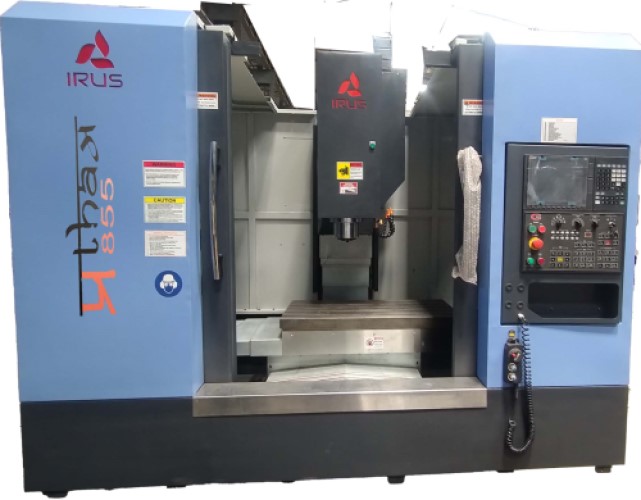

IMV - 855
IMV - 855
View SpecificationsSpecification Value Table Size (X & Y) 1000 x 550 mm Travel (X) 850 mm Travel (Y / Z) 550/500 mm T-Slot (No. x Width) 5 x 18 x 100 Max. Load on Table 700 Kg Spindle Face to Table Top 150-700 mm Rapid (X/Y/Z) 30/30/20 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 9000 RPM Spindle Power 7.5/11 Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 CNC Controller Mitsubishi / Fanuc / Siemens -
IMV - 1160
IMV - 1160
View SpecificationsSpecification Value Table Size (X & Y) 1300 x 600 mm Travel (X) 1100 mm Travel (Y / Z) 600/600 mm T-Slot (No. x Width) 5 x 18 x 100 Max. Load on Table 1000 Kg Spindle Face to Table Top 150-750 mm Rapid (X/Y/Z) 30/30/20 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 9000 RPM Spindle Power 7.5/11 Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 CNC Controller Mitsubishi / Fanuc / Siemens -
IMV - 1375
IMV - 1375
View SpecificationsSpecification Value Table Size (X & Y) 1500 x 750 mm Travel (X) 1300 mm Travel (Y / Z) 750/750 mm T-Slot (No. x Width) 5 x 18 x 100 Max. Load on Table 1500 Kg Spindle Face to Table Top 150-900 mm Rapid (X/Y/Z) 20/20/15 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 (50) / 9000 RPM Spindle Power 11/15 Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 20 / 24 CNC Controller Mitsubishi / Fanuc / Siemens
-
IMV - 650
-

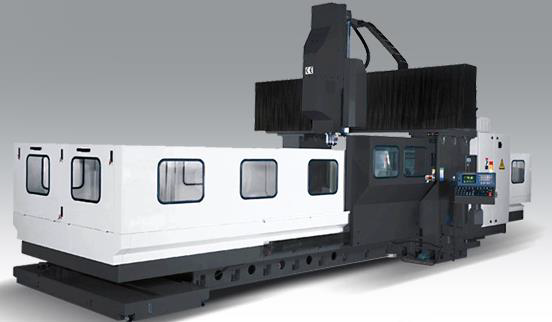

IMD - Series Double Column Machining Center
-
IMD-2212
IMD-2212
View SpecificationsSpecification Value Table Size 2200 x 1000 mm T-Slots (No. x Width) 22 x 7 x 160 X Axis Travel 2200 mm Y Axis Travel 1200 mm Z Axis Travel 850 mm Distance from Spindle Nose to Table Centre 150-1000 mm Distance Between Columns 1400 mm Max Loading Capacity 4000 Kg X Axis Rapid 20 m/min Y Axis Rapid 20 m/min Z Axis Rapid 15 m/min Spindle Motor 18.5 / 22 Kw Max Spindle Speed 6000 RPM ATC BT 50 Tool Storage 24 Weight 17000 Kg Controller Mitsubishi / Fanuc / Siemens -
IMD-3216
IMD-3216
View SpecificationsSpecification Value Table Size 3200 x 1500 mm T-Slots (No. x Width) 22 x 9 x 160 X Axis Travel 3200 mm Y Axis Travel 1600 mm Z Axis Travel 1000 mm Distance from Spindle Nose to Table Centre 150-1150 mm Distance Between Columns 1700 mm Max Loading Capacity 10000 Kg X Axis Rapid 20 m/min Y Axis Rapid 20 m/min Z Axis Rapid 15 m/min Spindle Motor 18.5 / 22 Kw Max Spindle Speed 6000 RPM ATC BT 50 Tool Storage 24 Weight 31000 Kg Controller Mitsubishi / Fanuc / Siemens -
IMD-4216
IMD-4216
View SpecificationsSpecification Value Table Size 4200 x 1500 mm T-Slots (No. x Width) 22 x 9 x 160 X Axis Travel 4200 mm Y Axis Travel 1600 mm Z Axis Travel 1000 mm Distance from Spindle Nose to Table Centre 150-1150 mm Distance Between Columns 1700 mm Max Loading Capacity 12000 Kg X Axis Rapid 15 m/min Y Axis Rapid 20 m/min Z Axis Rapid 15 m/min Spindle Motor 18.5 / 22 Kw Max Spindle Speed 6000 RPM ATC BT 50 Tool Storage 24 Weight 36000 Kg Controller Mitsubishi / Fanuc / Siemens -
IMD-3222
IMD-3222
View SpecificationsSpecification Value Table Size 3200 x 2100 mm T-Slots (No. x Width) 28 x 10 x 200 X Axis Travel 3200 mm Y Axis Travel 2200 mm Z Axis Travel 1000 mm Distance from Spindle Nose to Table Centre 150-1150 mm Distance Between Columns 2300 mm Max Loading Capacity 10000 Kg X Axis Rapid 20 m/min Y Axis Rapid 20 m/min Z Axis Rapid 15 m/min Spindle Motor 18.5 / 22 Kw Max Spindle Speed 6000 RPM ATC BT 50 Tool Storage 24 Weight 33000 Kg Controller Mitsubishi / Fanuc / Siemens -
IMD-4222
IMD-4222
View SpecificationsSpecification Value Table Size 4200 x 2100 mm T-Slots (No. x Width) 28 x 10 x 200 X Axis Travel 4200 mm Y Axis Travel 2200 mm Z Axis Travel 1000 mm Distance from Spindle Nose to Table Centre 150-1150 mm Distance Between Columns 2300 mm Max Loading Capacity 14000 Kg X Axis Rapid 15 m/min Y Axis Rapid 20 m/min Z Axis Rapid 15 m/min Spindle Motor 18.5 / 22 Kw Max Spindle Speed 6000 RPM ATC BT 50 Tool Storage 24 Weight 40000 Kg Controller Mitsubishi / Fanuc / Siemens -
IMD-5222
IMD-5222
View SpecificationsSpecification Value Table Size 5200 x 2100 mm T-Slots (No. x Width) 28 x 10 x 200 X Axis Travel 5200 mm Y Axis Travel 2200 mm Z Axis Travel 1000 mm Distance from Spindle Nose to Table Centre 150-1150 mm Distance Between Columns 2300 mm Max Loading Capacity 18000 Kg X Axis Rapid 15 m/min Y Axis Rapid 20 m/min Z Axis Rapid 15 m/min Spindle Motor 18.5 / 22 Kw Max Spindle Speed 6000 RPM ATC BT 50 Tool Storage 24 Weight 45000 Kg Controller Mitsubishi / Fanuc / Siemens
-
IMD-2212
-

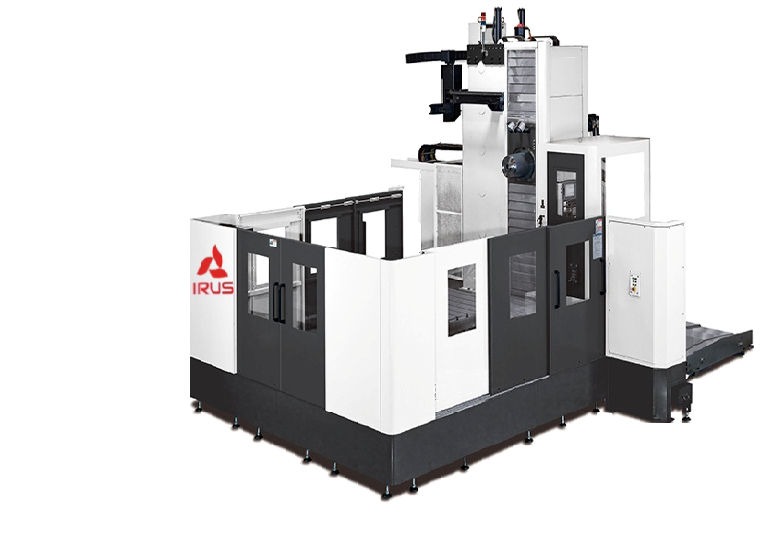

IMH - Series Horizontal Machining Center
-
IRUS IMH500
IRUS IMH500
View SpecificationsSpecification Value Pallet Size 500 x 500 mm X Axis Travel 850 mm Y Axis Travel 700 mm Z Axis Travel 850 mm Distance from Spindle Nose to Table Centre 100-950 mm Max Loading Capacity 800 Kg Rapid (X/Y/Z) 30/30/30 m/min Pallet Type 24-M16 x P2.0 Max Spindle Speed 9000 RPM ATC BT 40 Tool Storage 24 Spindle Motor 11/15 Kw Power Supply 30 KVA Weight 12000 Kg Controller Mitsubishi / Fanuc / Siemens -
IRUS IMH5000
IRUS IMH5000
View SpecificationsSpecification Value Pallet Size 500 x 500 mm X Axis Travel 850 mm Y Axis Travel 700 mm Z Axis Travel 850 mm Distance from Spindle Nose to Table Centre 100-950 mm Max Loading Capacity 800 Kg Rapid (X/Y/Z) 30/30/30 m/min Pallet Type 24-M16 x P2.0 Max Spindle Speed 6000 RPM ATC BT 50 Tool Storage 24 Spindle Motor 15/18.5 Kw Power Supply 35 KVA Weight 12000 Kg Controller Mitsubishi / Fanuc / Siemens -
IRUS IMH6300
IRUS IMH6300
View SpecificationsSpecification Value Pallet Size 630 x 630 mm X Axis Travel 1100 mm Y Axis Travel 850 mm Z Axis Travel 1000 mm Distance from Spindle Nose to Table Centre 100-1100 mm Max Loading Capacity 1000 Kg Rapid (X/Y/Z) 30/30/30 m/min Pallet Type 24-M16 x P2.0 Max Spindle Speed 6000 RPM ATC BT 50 Tool Storage 24 Spindle Motor 15/18.5 Kw Power Supply 40 KVA Weight 18000 Kg Controller Mitsubishi / Fanuc / Siemens -
IRUS IMH8000
IRUS IMH8000
View SpecificationsSpecification Value Pallet Size 800 x 800 mm X Axis Travel 1450 mm Y Axis Travel 1050 mm Z Axis Travel 1200 mm Distance from Spindle Nose to Table Centre 150-1350 mm Max Loading Capacity 1800 Kg Rapid (X/Y/Z) 24/24/24 m/min Pallet Type 24-M16 x P2.0 Max Spindle Speed 6000 RPM ATC BT 50 Tool Storage 24 Spindle Motor 15/18.5 Kw Power Supply 40 KVA Weight 22000 Kg Controller Mitsubishi / Fanuc / Siemens
-
IRUS IMH500
-
IVT - Series Vertical Turning Center
-
IVT500
IVT500
View SpecificationsSpecification Value Swing Over Bed 600 mm Std. Turning Diameter 300 mm Max Turning Diameter 500 mm Max Turning Length 460 mm X Axis Travel 268 mm Z Axis Travel 488 mm Chuck Size 12 Inch Rapid X Axis 20 m/min Rapid Z Axis 24 m/min Max Spindle Speed 3000 RPM Spindle Nose A2-8 No. of Tool Station 12 OD Tool Size 25 mm Spindle Motor 18.5/22 Kw Power Supply 40 KVA Weight 5000 Kg Controller Mitsubishi / Fanuc / Siemens -
IVT830
IVT830
View SpecificationsSpecification Value Swing Over Bed 900 mm Std. Turning Diameter 390 mm Max Turning Diameter 830 mm Max Turning Length 750 mm X Axis Travel 495 mm Z Axis Travel 780 mm Chuck Size 15 Inch Rapid X Axis 20 m/min Rapid Z Axis 20 m/min Max Spindle Speed 2000 RPM Spindle Nose A2-11 No. of Tool Station 12 OD Tool Size 32 mm Spindle Motor 18.5/22 Kw Power Supply 45 KVA Weight 8500 Kg Controller Mitsubishi / Fanuc / Siemens
-
IVT500
-

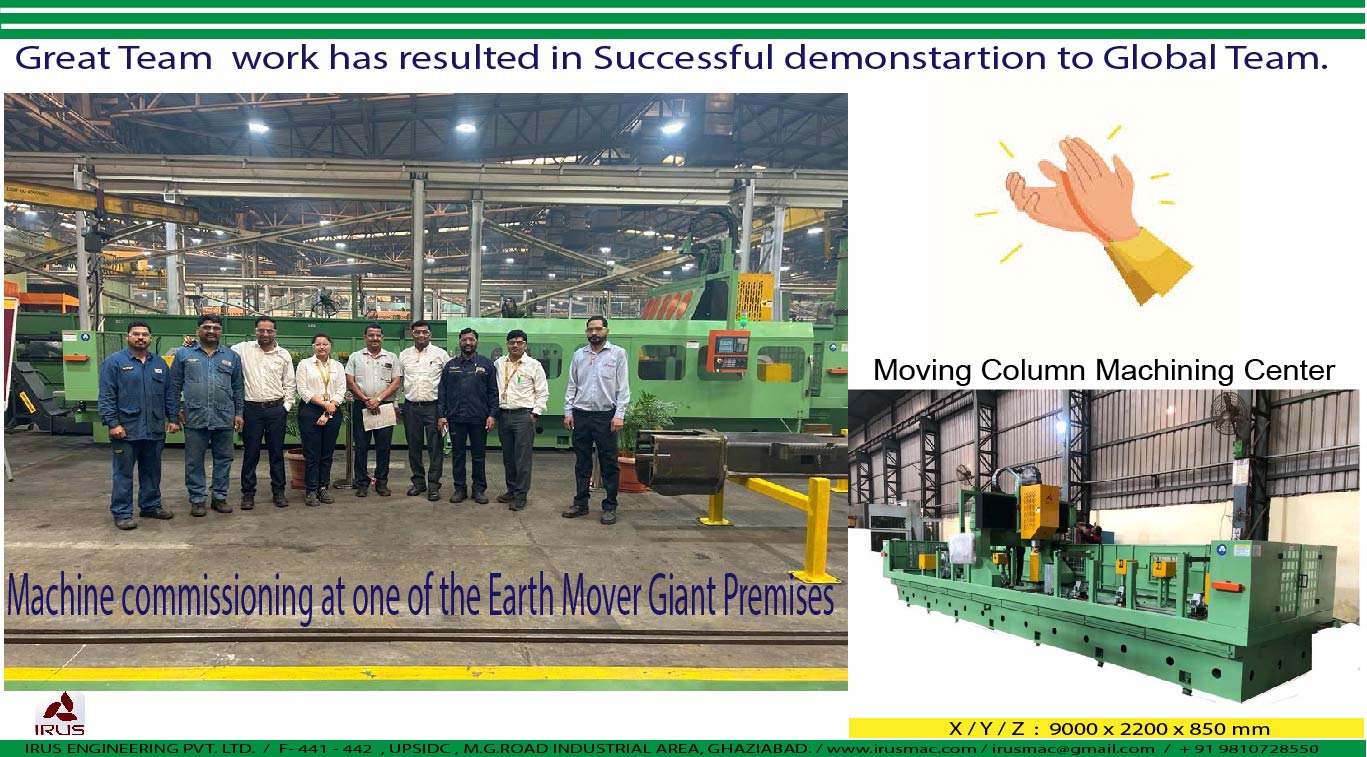

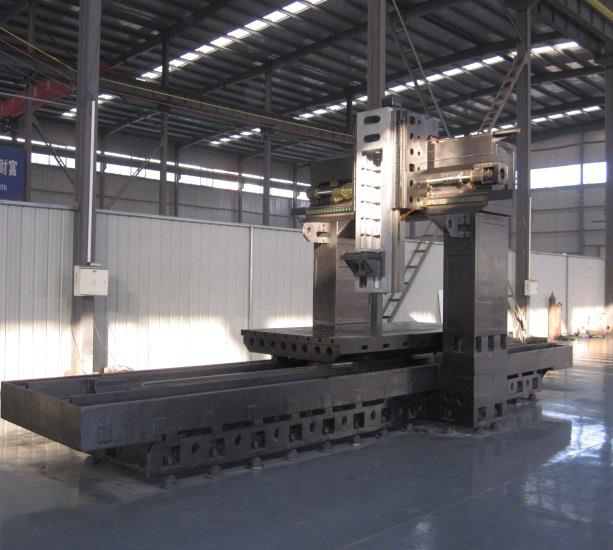

IMCM & IMDM - Series Moving Column Machining Center
-
IMCM 1600
IMCM 1600
View SpecificationsSpecification Value Work Table & Travel 6000 x 1600 mm Travel - X 6000 mm Travel - Y 1600 mm Travel - Z 1000 mm T-Slot 28 mm Max. Load on Table 3000-6000 Kg Face to Table Top 150-1150 mm Distance Between Column 2000 mm Rapid (X/Y/Z) 6/8/8 m/min Feed (X/Y/Z) 4 m/min Spindle Taper / Dia / Range BT 50 / Ø 190 / 6000 RPM Spindle Power 30 Kw Positioning (X/Y/Z) ± 0.07 mm Repeatability (X/Y/Z) ± 0.05 mm CNC Controller Mitsubishi / Fanuc / Siemens -
IMCM 2200
IMCM 2200
View SpecificationsSpecification Value Work Table & Travel 6000 x 2200 mm Travel - X 6000 mm Travel - Y 2200 mm Travel - Z 1000 (1200) mm T-Slot 28 mm Max. Load on Table 3000-5000 Kg Face to Table Top 150-1150 mm Distance Between Column 2600 mm Rapid (X/Y/Z) 6/8/8 m/min Feed (X/Y/Z) 4 m/min Spindle Taper / Dia / Range BT 50 / Ø 190 / 6000 RPM Spindle Power 30 Kw Positioning (X/Y/Z) ± 0.08 mm Repeatability (X/Y/Z) ± 0.05 mm CNC Controller Mitsubishi / Fanuc / Siemens -
IMDM 3000
IMDM 3000
View SpecificationsSpecification Value Work Table & Travel 14000 x 3000 mm Travel - X 6000/10000/12000 mm Travel - Y 4000 mm Travel - Z 1250 (1500) mm T-Slot 28 mm Max. Load on Table 10000-16000 Kg Face to Table Top 550-1800 mm Distance Between Column 4500 mm Rapid (X/Y/Z) 6/6/6 m/min Feed (X/Y/Z) 4 m/min Spindle Taper / Dia / Range BT 50 / Ø 190 / 6000 RPM Spindle Power 30 Kw Positioning (X/Y/Z) ± 0.08 mm Repeatability (X/Y/Z) ± 0.05 mm CNC Controller Mitsubishi / Fanuc / Siemens -
IMDM 4000
IMDM 4000
View SpecificationsSpecification Value Work Table & Travel 12000 x 4000 mm Travel - X 6000/10000/12000 mm Travel - Y 4000 (5000) mm Travel - Z 1250 (1500) mm T-Slot 28 mm Max. Load on Table 10000-16000 Kg Face to Table Top 550-1800 mm Distance Between Column 5500 mm Rapid (X/Y/Z) 6/6/6 m/min Feed (X/Y/Z) 4 m/min Spindle Taper / Dia / Range BT 50 / Ø 190 / 6000 RPM Spindle Power 30 Kw Positioning (X/Y/Z) ± 0.08 mm Repeatability (X/Y/Z) ± 0.05 mm CNC Controller Mitsubishi / Fanuc / Siemens
-
IMCM 1600
-
IMC - Series - Long Travel Moving Column VMC
-
IMC 2500 / (IMCH)
IMC 2500 / (IMCH)
View SpecificationsSpecification Value Table Size (X & Y) 2500 x 500 / (650) mm Travel (X) 2500 mm Travel (Y / Z) 450(580) / 500 mm T-Slot (No. x Width) 5 x 18 x 100 Max. Load on Table 2500 Kg Spindle Face to Table Top 100 - 600 / (150 - 650) mm Rapid (X/Y/Z) 60 / 28 / 28 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 10000 / (BT 50 / 9000) RPM Spindle Power 7.5 / 11 (11/15) (18/22) Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 12 / 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens -
IMC 4500 / (IMCH)
IMC 4500 / (IMCH)
View SpecificationsSpecification Value Table Size (X & Y) 4500 x 500 / (650) mm Travel (X) 4500 mm Travel (Y / Z) 450(580) / 500 mm T-Slot (No. x Width) 5 x 18 x 100 Max. Load on Table 3500 Kg Spindle Face to Table Top 100 - 600 / (150 - 650) mm Rapid (X/Y/Z) 60 / 28 / 28 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 10000 / (BT 50 / 9000) RPM Spindle Power 7.5 / 11 (11/15) (18/22) Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 12 / 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens -
IMC 6500 / (IMCH)
IMC 6500 / (IMCH)
View SpecificationsSpecification Value Table Size (X & Y) 6500 x 500 / (650) mm Travel (X) 6500 mm Travel (Y / Z) 450(580) / 500 mm T-Slot (No. x Width) 5 x 18 x 100 Max. Load on Table 4500 Kg Spindle Face to Table Top 100 - 600 / (150 - 650) mm Rapid (X/Y/Z) 60 / 28 / 28 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 10000 / (BT 50 / 9000) RPM Spindle Power 7.5 / 11 (11/15) (18/22) Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 12 / 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens -
IMC 8500 / (IMCH)
IMC 8500 / (IMCH)
View SpecificationsSpecification Value Table Size (X & Y) 8500 x 500 / (650) mm Travel (X) 8500 mm Travel (Y / Z) 450(580) / 500 mm T-Slot (No. x Width) 5 x 18 x 100 Max. Load on Table 5500 Kg Spindle Face to Table Top 100 - 600 / (150 - 650) mm Rapid (X/Y/Z) 60 / 28 / 28 m/min Guideway (X/Y/Z) Linear Roller Guideways Spindle Taper / Range BT 40 / 10000 / (BT 50 / 9000) RPM Spindle Power 7.5 / 11 (11/15) (18/22) Kw Axis Motor (X/Y/Z) 2 / 2 / 3 Kw Positioning (X/Y/Z) ± 0.005 / 300 mm Repeatability (X/Y/Z) ± 0.003 / 300 mm Tool Storage Capacity 12 / 20 / 24 / 30 CNC Controller Mitsubishi / Fanuc / Siemens
-
IMC 2500 / (IMCH)
-
